Missile rails#
Generated from Rails.xml, the family KSArmory files these under (KSArmory → Built-in weapons → Rails).
AIM-9J Sidewinder#

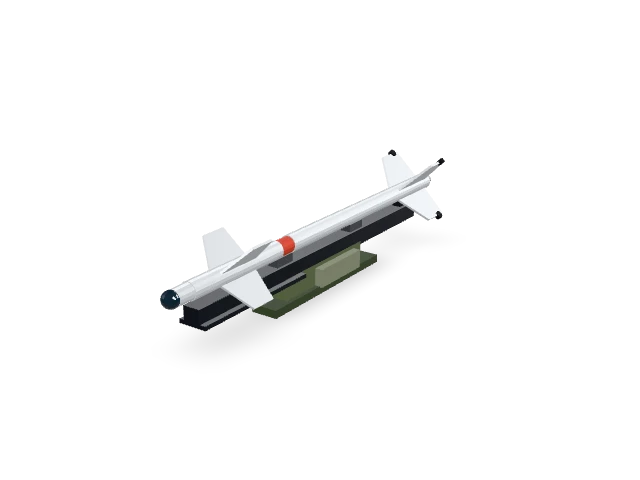

A single rail carrying one AIM-9J, surface-attaching to anything. Nothing on it moves: no turret, no pods, one round and no reload, so where it can shoot is decided by how the craft is pointed. The round has a seeker of its own rather than a command link, so it keeps guiding after the launcher loses the track. 400 m to 14 km.
Part KSArmory_Prefab_SidewinderRail.
LAU-7 Sidewinder rail: 1 tube.
| Round | Guidance | Reach | Warhead | Fuse |
|---|---|---|---|---|
| AIM-9J Sidewinder | seeker | 400 m – 14 km | 9.4 kg | 12 m |
| Sensor | Kind | Range | Cone |
|---|---|---|---|
| AIM-9 seeker head | passive | 16 km | 50° |
AIM-120C AMRAAM#
The same launcher again, carrying an AIM-120C-7 instead. Mechanically identical to the LAU-7: nothing moves, one round, no reload. What differs is reach — a boost-only motor to about Mach 4 and a long coast after it, so 900 m out to 105 km, and a shot taken at the far end arrives slow and turns badly. Its body is the first round in the mod authored in Blender rather than generated by a script, so it is unwrapped and its bands are painted rather than modelled — the LITENING pod and the suspension rail it hangs from were authored before it.
Part KSArmory_Prefab_AmraamRail.
LAU-128 AMRAAM rail: 1 tube.
| Round | Guidance | Reach | Warhead | Fuse |
|---|---|---|---|---|
| AIM-120C-7 AMRAAM | seeker | 900 m – 105 km | 20 kg | 14 m |
| Sensor | Kind | Range | Cone |
|---|---|---|---|
| AIM-120 seeker head | radar | 40 km | 60° |
AGM-88 HARM#

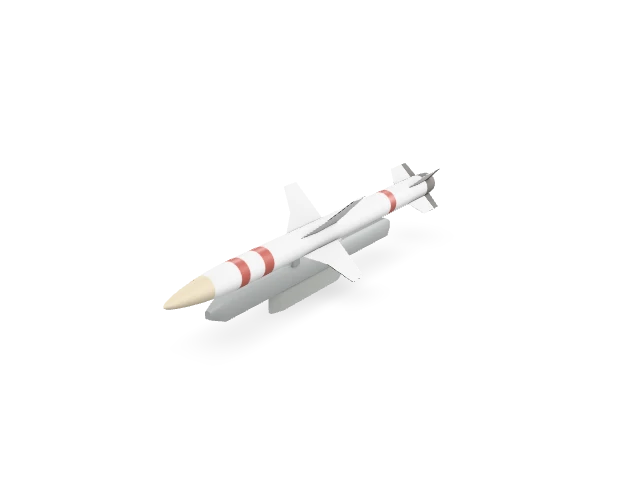

The same rail once more, carrying an AGM-88, and the one that cannot engage an aircraft at all: it homes on an emission, so a contact that is not transmitting is not a target however large or close, and a radar site that goes quiet stops being one. Its motor boosts and then sustains where the AMRAAM only boosts, so it still holds speed at the far end of a 1.2 km to 148 km envelope.
Part KSArmory_Prefab_HarmRail.
LAU-118 HARM rail: 1 tube.
| Round | Guidance | Reach | Warhead | Fuse |
|---|---|---|---|---|
| AGM-88 HARM | anti-radiation | 1.2 km – 148 km | 66 kg | 16 m |
| Sensor | Kind | Range | Cone |
|---|---|---|---|
| AGM-88 seeker head | passive | 60 km | 70° |
